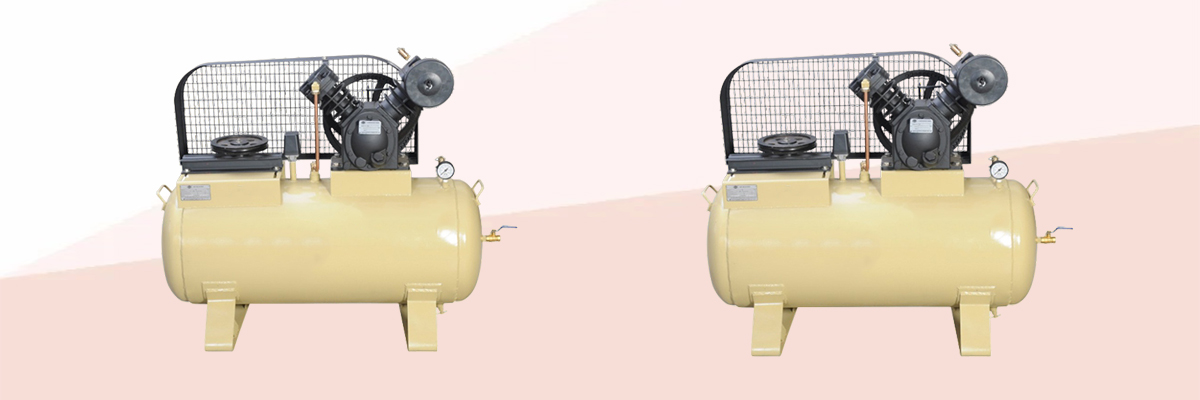

American Make Two Stage Air Compressor
Two Stage Air Compressor :
TECHNICAL SPECIFICATION :
| Model | Motor | No of Cylinder | RPM | Tank Size in Inch | Tank Size in Litres | Max. Working Pressure | Bore × Sroke | Piston Displacement | ||||
| HP | kW | PSI | Kg/CM2 | mm | CFM | M3/M | LPM | |||||
| RC - 34 | 3.00 | 2.25 | 2 | 720 | 18 × 40 | 166 | 175 | 12 | 3"x1 3/4"x2 3/4" | 8.10 | 0.23 | 229 |
| RC - 42 | 5.00 | 3.75 | 2 | 720 | 18 × 48 | 200 | 175 | 12 | 4"x2 1/2"x2 3/4" | 14.40 | 0.41 | 407 |
| RC - 53 | 7.50 | 5.62 | 2 | 640 | 18 × 58 | 240 | 175 | 12 | 5"x3"x3 1/2" | 25.45 | 0.72 | 720 |
| RC - 2345 | 10.00 | 7.50 | 2 | 640 | 20 × 60 | 300 | 175 | 12 | 5 1/2"x3"x4" | 35.20 | 1.00 | 996 |
| RC - 21T2 | 12.50 | 9.38 | 2 | 720 | 20 × 60 | 300 | 175 | 12 | 5 1/2"x3 1/2"x4" | 39.60 | 1.12 | 1121 |
| RC - 6900 | 15.00 | 11.25 | 3 | 610 | 24 × 66 | 500 | 175 | 12 | 5"x5"x3 1/2"x4" | 55.45 | 1.57 | 1570 |
| RC - 6900 | 20.00 | 15.00 | 3 | 680 | 24 × 66 | 500 | 175 | 12 | 5"x5"x3 1/2"x4" | 61.81 | 1.75 | 1750 |
| RC - 75T | 25.00 | 18.75 | 3 | 745 | 24 × 66 | 500 | 175 | 12 | 5 1/2"x5 1/2"4"x4" | 81.95 | 2.32 | 2320 |
