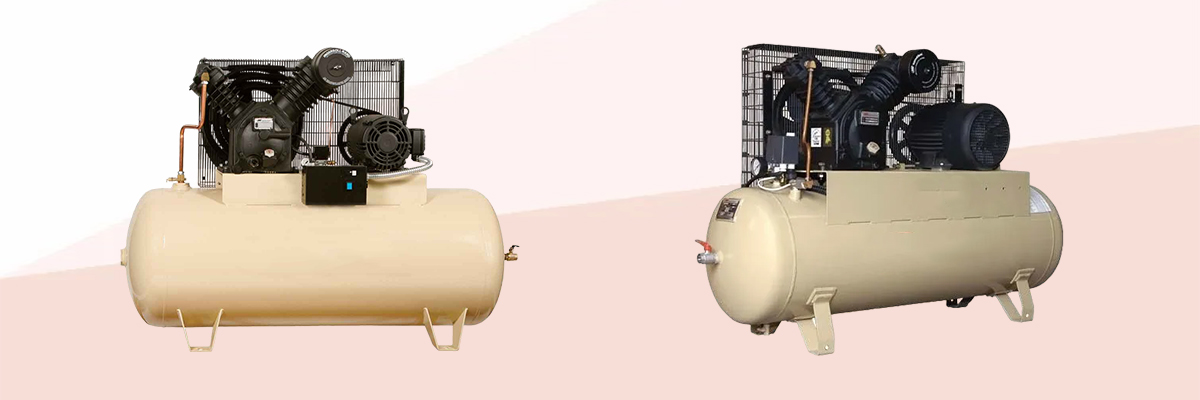

Ahmedabad Make Two stage Air Compressor
Two Stage Air Compressor :
TECHNICAL SPECIFICATION :
| Model | Cylinders Size × Stroke | Motor Hp | RPM | PD CFM | FAD CFM | Maximum | Pressure kg/CM2g | Air Receiver (Ltrs) |
| psig | ||||||||
| RC - 032 | 3"1.75"&2.75" | 2 | 660 | 7.42 | 5.63 | 175 | 12.5 | 100/150 |
| RC - 034 | 3"1.75"&2.75" | 3 | 866 | 9.79 | 6.93 | 175 | 12.5 | 160/200 |
| RC - 042 | 4"2.5"&2.75" | 5 | 866 | 17.32 | 13.02 | 175 | 12.5 | 200/250 |
| RC - 053 | 5"3"&3.5" | 7.5 | 660 | 26.40 | 20.30 | 175 | 12.5 | 250/300 |
| RC - 0600 | 5"2.75"&3.5" | 10 | 916 | 35 | 30 | 175 | 12.5 | 300/500 |
| RC - 701T | 5.5"x3"&4" | 10 | 660 | 44 | 31 | 175 | 12.5 | 300/500 |
| RC - 701T2 | 5.5"x3"&4" | 12.5 | 800 | 49.50 | 38 | 175 | 12.5 | 300/500 |
| RC - 105T | 5"x5"x3.5"&4" | 15 | 750 | 68.20 | 49.83 | 175 | 12.5 | 500 |
| RC - 105T2 | 5"x5"x3.5"&4" | 20 | 900 | 81 | 61 | 175 | 12.5 | 500 |
| RC - 205T | 5.5"x5.5"x4"&4" | 25 | 950 | 110 | 80 | 175 | 12.5 | 500 |
| RC - 30T | 5.5"x5.5"x4"&4" | 30 | 1100 | 121.03 | 93.20 | 175 | 12.5 | 500 |
